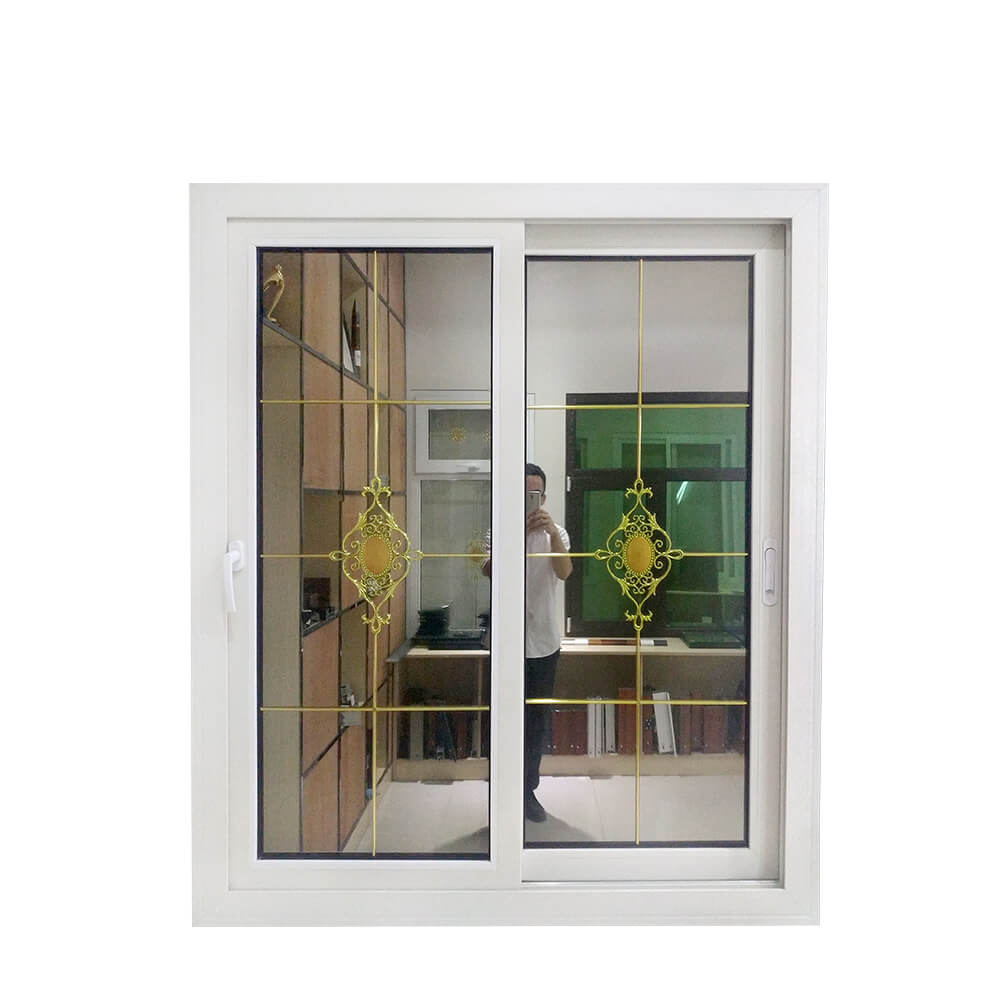

UPVC Sliding Window

UPVC sliding window uses Unplasticized Polyvinyl Chloride (UPVC) resin as the main raw material with a certain amount of stabilizer, colorants, fillers, UV absorbents etc. By extrusion molding, then make into door and window frame and sash by cutting and welding.

Equipped with EPDM sealing strip, weather trips, hardware to enhance the rigidity of the profile. It need to fill steel liner (reinforcing rib) into the shaped cavity if it beyond a certain length. It is called UPVC window.

UPVC sliding window is artistic, sealed, high strength, widely used in buildings like construction, residences, office, commercial office building, commercial center, high-end residence, hospital, laboratory etc.

First

First, according to different needs, aluminum alloy sliding window has many choices.

For example: single panel sliding, double panels sliding, sliding window+fixed panel, UPVC sliding window with flynet, UPVC sliding window with anti-theft grill.

Second, composition:

1. Profile:

UPVC windows are heat insulation profile.

Use doors and windows that designed with UPVC profile, K or U value can reach 0.5-1.5w/M2K.

Surface processing method: spraying and coating.

Thickness of profiles: 1.4mm-2.5mm.

Profile series or profile width: 60mm, 80mm, 88mm.

2. Hardware accessories:

Hardware accessory is also an important part of UPVC windows. Good hardware plays a vital role in the insulation, air tightness and water tightness of doors and windows. Different window types have different hardware options and compositions.

UPVC sliding window:

Crescent lock + roller pulley + EPDM sealing strip+weather strip + wind block + anti-theft block + flynet

Touch lock +roller pulley + EPDM sealing strip + weather strip+ wind block + anti-theft block + flynet

Invisible handle lock +roller pulley + EPDM sealing strip + weather strip+ wind block + anti-theft block + flynet

Handle lock +roller pulley + EPDM sealing strip + weather strip+ wind block + anti-theft block + flynet

3. Glass:

Glass is an important part of UPVC windows. It has the functions of light transmission, heat insulation, waterproof and windproof. Good glass also has the functions of anti-hurricane, dimming and UV protection.

Commonly used glass types are float glass, tempered glass, insulating glass, laminated glass, colored glass, reflective glass, low-e glass, bulletproof glass, dimming glass, art glass, pattern glass, frosted glass, etc.

Glass thickness: 4-19mm.

Third, performance and advantage:

Performance

1. Good heat insulation: UPVC profile has low thermal conductivity, heat insulation effect is 1250 times of aluminum.

Good air tightness: even in minus dozens of degrees cold area, indoor and outdoor are totally two worlds

2. Good sound proof: carefully designed structure and tight sealing can reach 30db Sound insulation effect.

3. Bear impact

4. Good air tightness: UPVC windows are equipped with multiple sealing weather strips or EPDM sealing strips, so the air tightness is one grade, can give full play to air conditioner effect and save 50% energy.

5. Good water tightness: the doors and windows are designed with rain proof structure, the rain water is completely isolated from the outdoor.

6. Good fire proof: UPVC doors and windows are non-spontaneous combustion, non-combustion.

7. Good anti-theft: have excellent hardware accessories and high-end decoration locks.

8. Maintenance-free: acid and alkali resistant, not turn yellow fade, almost not maintenance. When dirty, easy clean.

9. Best design: UPVC window is scientifically designed, using reasonable energy-saving profiles, recognized and praised by the national authority, adding luster to the building.

UPVC Sliding Window:

Advantages:

1. Simple design, artistic, Large ventilation and wide view

2. Easy cleaning, easy using

3. Safety and Reliable

4. Anti-aging

5. Save space

6. Install screen easily

7. Economic and cheap price

The disadvantage is that two windows can not be opened at the same time, at most can only open half, relatively poor ventilation; Sometimes the sealing is a little worse. Sliding window: divide into left and right, sliding up and down two kinds.

Sliding window has the advantage that does not occupy indoor space, appearance is beautiful, price economy, sealing is better. High grade sliding rail, gently sliding, open flexible. With large pieces of glass, not only increase the indoor lighting, but also improve the overall shape of the building. The stress state of the sash is good and not easy to damage, but the ventilation area is limited.

Fourth, application:

It can be used in bungalows, high buildings, villas, commercial centers, office buildings, containers, steel structure workshops, light steel plate rooms, etc.
