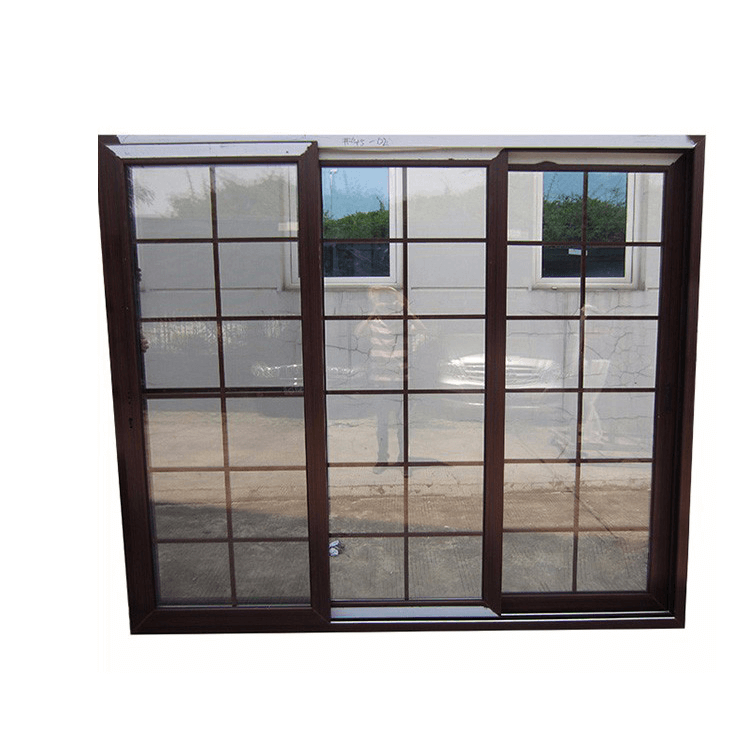

UPVC Sliding Door Composition

Classification:

According to different needs and designs, UPVC sliding door has many types to choose.

The Product Parameters:

Item	K/U (insulation)	Airtightness/ m3/ (m2.h)	Watertighness/ Pa	wind pressure/ KPa	Profile thickness	Glass thickness
Parameter	＜1.1	≤0.5	≥700	≥5.0	0.8-3.0	3mm-30mm

Composition:

1. Profile:

All the UPVC profiles are heat insulation profiles
Doors and doors that designed with UPVC profiles, thermal insulation coefficient K or U can reach 0.5-1.5w/M2K.
Surface processing method of all profiles are spraying and coating.
Thickness of profiles: thickness of UPVC shutters is 1.4mm-2.5mm.
Profile series which called profile width: 20mm-88mm.

2. Hardware fitting:

Hardware fitting is the important component of UPVC door, high quality hardware fitting play a vital role in heat insulation, air tightness, water tightness in doors and doors.
Different types of doors have different hardware combinations and choices.
UPVC sliding door:
Crescent lock + pulley + sealing rubber strip + anti-wind block + security block + screen sash
Touch lock+ pulley + sealing rubber strip + anti-wind block + security block + screen sash
handle lock+ pulley + sealing rubber strip + anti-wind block + security block + screen sash

3. Glass:

The main types of glass commonly used are float glass, tempered glass, hollow glass, laminated glass, colored glass, coated glass, low-e glass, bulletproof glass, dimming glass, art glass, embossed glass, frosted glass, etc.
Glass thickness: 2mm-19mm.

Features And Advantages:

Plastic-steel sliding door’s advantages are simple and beautiful, large door range, big glass, wide vision, high daylighting rate, easy to clean the glass, flexible to use, safe and reliable, long service life, take up smaller space when opening in a plane, easy to Install the screen door etc, affordable price, good airtightness. Use High-grade slippery course, push lightly, flexible to open. Equipped with big glass, Increase indoor daylighting and improve the overall appearance of buildings.
